The Most Effective Noise and Vibration Control Tool in Healthcare Design is the Floor Plan
Hospital noise and vibration control is most effective when it starts with the floor plan: early space-planning decisions about room location, adjacencies, and proximity to noise and vibration sources usually do more than treatments added later. For healthcare designers, architects, acousticians, hospital planners, and construction professionals working on new hospitals or renovations, the key consideration is to understand those inherited conditions or requirements before the design process fixes them in place. Where a sensitive room sits relative to a loading dock, rail line, helipad, busy road, or mechanical shaft often has more effect on the acoustic outcome than any wall, ceiling, or floating floor specified after the plan is set. Many of the biggest acoustic successes, or compromises, are determined long before wall assemblies and ceiling specifications are discussed.
Timing matters because hospital noise affects patient recovery and staff stress, while vibration can impair functionality of diagnostic and imaging equipment. A hospital plan also fills up fast. Diagnostic Imaging has to be near the Emergency Department. Inpatient Units follow clinical flow. Those adjacencies lock in early, and with them the practical limits on sound isolation, reverberation control, background and mechanical noise targets, and vibration control. This article looks at how floor-plan layout drives those outcomes, where occupied-hospital renovations create harder constraints, what changes when acoustical input comes in early versus late, and which planning moves the design team should make before relying on added treatment or structural upgrades.
Careful planning is still needed to prevent waiting rooms, trauma bays, and ambulance activity from affecting nearby patient care areas. MRI suites require strict vibration control and need separation from mechanical rooms, loading docks, major traffic corridors, and helipads. Patient rooms are among the most acoustically sensitive spaces in a hospital and should be buffered from mechanical rooms, food service operations, waste handling, and central utility plants. The acoustician who is in the room while the facility layout is still fluid can support space planning as a cost-effective noise and vibration control strategy. Arrive later, and the remaining tools are additional treatment, isolation measures, and structural enhancements, all of which can add material, cost, and coordination pressure to the project.
How noise affects patients and staff
High noise levels are a challenge in many hospitals. For patients, excessive noise can contribute to disrupted sleep and recovery and for staff, it can increase stress, fatigue and burnout. The World Health Organization recommends average patient-room levels at night of around 30 decibels, roughly a whisper at a distance of 1 metre, yet real hospitals routinely run well above that. A University of Chicago study found that 42% of patients were woken by noise, and those exposed to the loudest night time noise slept about 76 minutes less than those in the quietest rooms. Excessive sound can also increase blood pressure and heart rates in patients. Sleep disturbance has a clear, measurable effect on patient recovery.
The interior acoustic environment also affects staff and visitors, contributing to fatigue and stress while impeding speech intelligibility, which is essential to safe clinical care. Acoustic conditions also affect healthcare professionals and patient well being. Much of the underlying background noise is preventable, and quiet hours during night shifts and training staff to adopt quiet operational habits are part of that control strategy. The budget tradeoff between layout and treatment is significant: you cannot absorb your way out of a room placed next to a plant space, so if undesirable adjacencies are not addressed during layout design, heavier, more expensive isolation measures and construction assemblies carrying greater embodied carbon may become necessary.
Vibration control and diagnostic equipment
MRI, high-resolution microscopy, and CT scanners sit at the demanding end of the vibration-sensitivity scale; operating rooms and labs are more forgiving. The levels that matter are far below anything the structure notices, yet can be exceeded within reach of a loading dock, a rail line, or a rooftop helipad.
The logic is counterintuitive, which is why it needs to be considered early. If the dominant source is external, ground-borne vibration weakens as it travels into and up the building structure, so sensitive equipment belongs higher up. If there is no significant external source, put it low, on slab on grade, where the floor is stiffest. Siting MRI on column lines is another common strategy in vibration control.
Every project has its own sources of vibration at the site, its own structure, its own fixed adjacencies, and the optimal design is dependent on that combination. Vibration criteria should be defined and subject to early review during evaluation, using guidelines such as ISO 10137:2007.
Renovating occupied healthcare facilities
The hardest case is renovating a hospital that has to keep running: construction noise and vibration carry into occupied wards and imaging suites nearby, a phasing problem far easier to solve on the plan than in a complaint from a surgeon mid-procedure. Noise and vibration monitoring is often required during renovation to protect sensitive medical equipment and occupied care areas. Significant renovations can involve changing functional adjacencies in the hospital or upgrading to target modern performance standards, whilst retaining as much of the original structure and services as possible. These projects typically require careful analysis to develop enhancements to the retained structure, and the team may also need to accommodate phased works and base-building limitations in existing structures so the additional treatment can be as efficient as possible.
Four projects, from early to late
How much the plan can do depends almost entirely on when we are brought in. These project examples show that clearly.
- Kamloops Cancer Centre shows what happens when the right questions get asked early. A parking structure overhead threatened the diagnostic imaging, so rather than isolate everything, we relocated the sensitive equipment to the basement to meet the output specifications, coordinating in the early design process with the civil and structural engineers. It is one of a few examples where vibration risk was designed out before hardware was added. Major isolation was avoided, and the problem was designed out at effectively no cost.

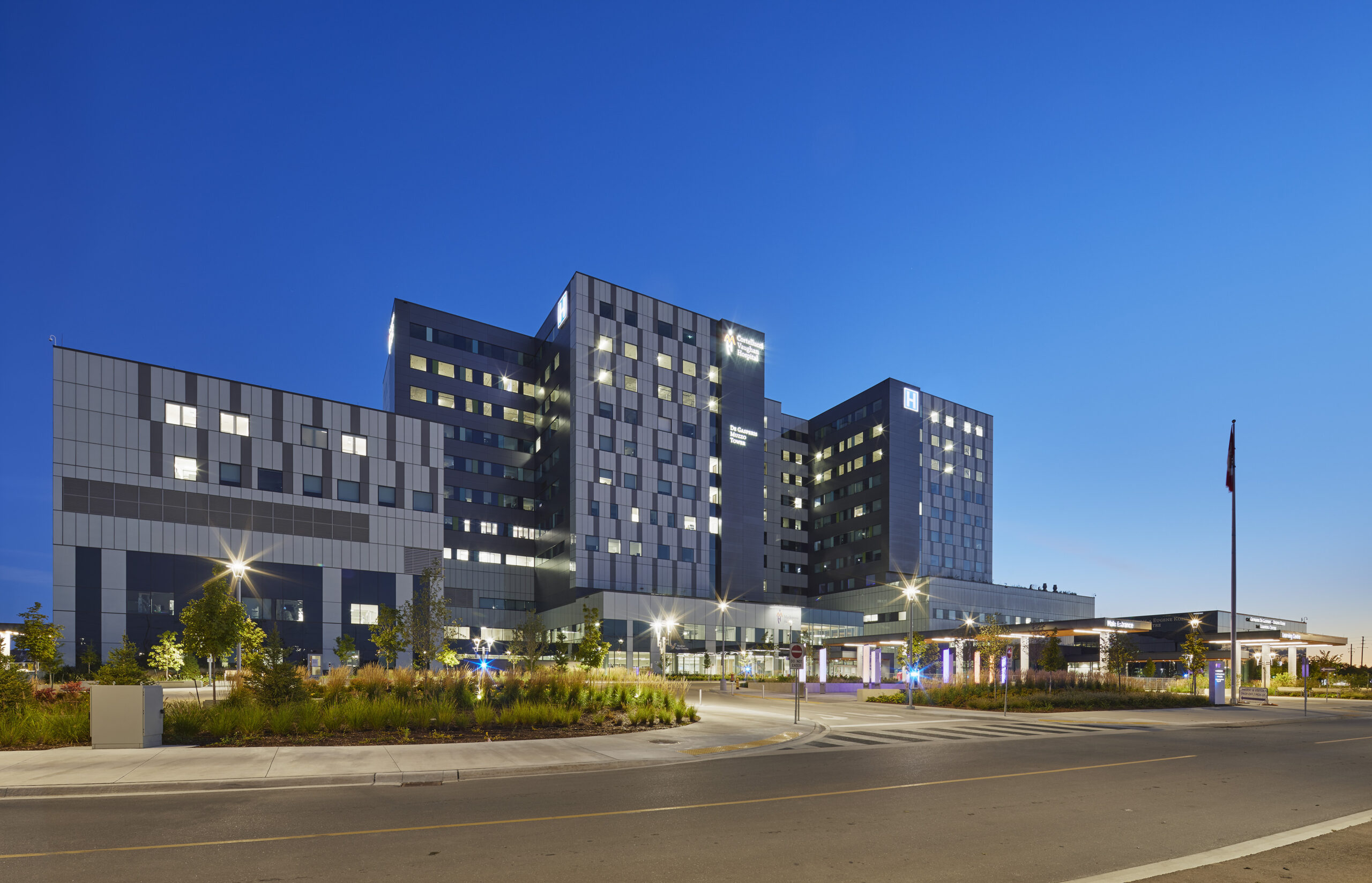

- Cortellucci Vaughan Hospital is the middle ground. We were in early, but the building envelope was fixed by the output specifications, and imaging could not move farther from the adjacent loading dock. Rather than force in a floating floor to cover modelling uncertainty, we borrowed a technique from another industry and used vibration monitoring during construction, giving a certainty a model cannot, reducing risk to sensitive medical equipment, and letting the design proceed without over-building.
- Niagara Health, Marotta Family Hospital shows what happens when the clinical plan ties your hands. The governing environmental condition was the site’s proximity to freight rail. The textbook response, lifting sensitive equipment higher to shed ground-borne vibration, was off the table because imaging had to stay low, near the emergency department. The equipment sits instead on a floating concrete slab on air springs, sized using ground measurements taken on site before construction rather than a conservative guess.

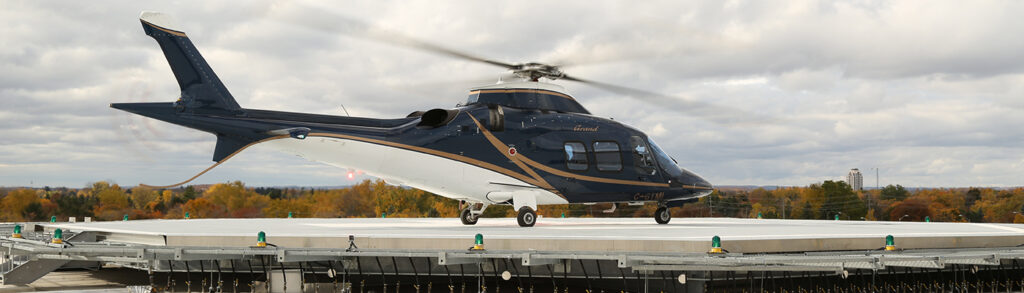

- Markham Stouffville Hospital is the late case. A rooftop helipad above the NICU was a fixed condition by the time we were engaged, with no room left in the program to relocate either the pad or the ward below it. The solution combined the helipad on springs, carried down through dedicated columns, upgraded NICU glazing, and a noise barrier ceiling beneath the pad, meeting the project’s vibration and acoustic targets without compromising flight operations; these solutions depend on project-specific structural details rather than a universal assembly.
The pattern is the argument: the earlier the involvement, the more the plan does the work and the less the hardware has to.
What Aercoustics brings
Aercoustics pushes to get involved early in the design process to support the design team while the free options are still on the table. And we do not hand over a model and hope: we complete site evaluation before construction to set real targets, and performance verification after occupancy to prove it performs. The benchmarks are not the hard part. The FGI’s “Sound & Vibration 2.0: Design Guidelines for Health Care Facilities” and CSA Z8000 define what good looks like. The hard part is that acoustics is a small fraction of the scoring on a major pursuit, so it gets the least attention at the stage where the biggest decisions are made. By the time requirements lock, the free options are gone.
A floating floor is a good solution. An optimized floor plan is a better one.
Frequently asked questions
How loud should a hospital patient room be?
- The World Health Organization recommends average patient-room levels around 30 decibels, roughly the level of a whisper at a distance of 1 metre. Most hospitals run well above that target today.
When should an acoustician be involved in a healthcare design?
- As early as possible, while the floor plan is still fluid. Once adjacencies between imaging, wards, and clinical flow lock in, the acoustic options narrow to mass, isolation, and costly treatments.
Where should vibration-sensitive equipment like MRI be placed?
- It depends on the source. If the dominant vibration source is external, sensitive equipment does better higher in the building, since ground-borne vibration weakens as it travels up. If there is no significant external source, placing it low, on slab on grade, takes advantage of the stiffest part of the structure.
